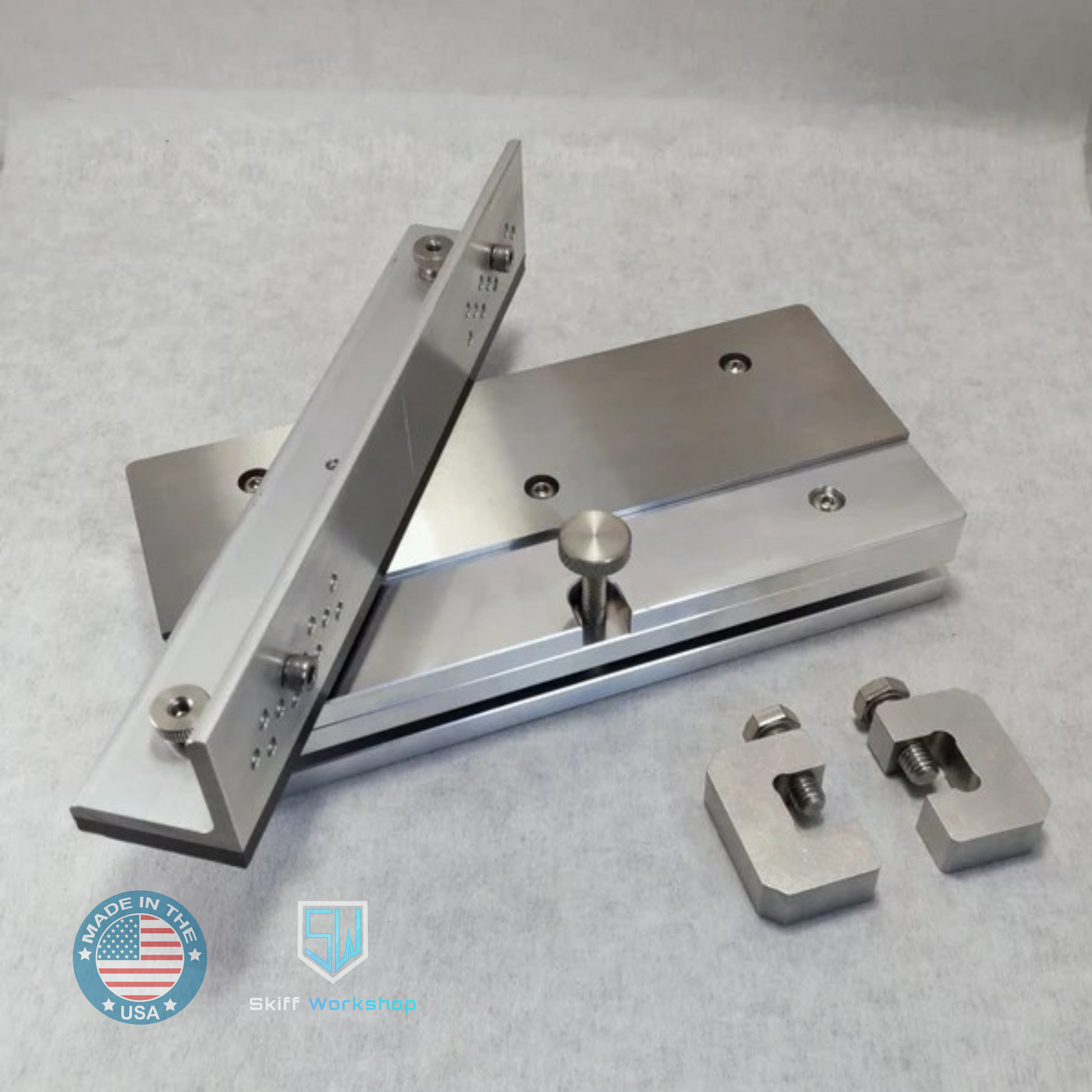

The Micro Adjust Platform lets you quickly fine tune your grinding angle and achieve repeatable results.
Shipping Note: This product ships in 1-2 weeks!!
(1) Micro Adjust Base with Hardened Steel Top (8")
(1) Blade Fixture (8.5")
(2) Custom Camps
- 3/8" Aluminum base and adjuster plates prevents deflection when in use.
- 3/8" Aluminum internal hinge with Stainless Steel pins at movement points.
Hardened Steel Top Plate provides a low friction work surface that does not scratch or get embedded with grit as you grind.
- Thumb screw used to finely adjust the angle of the Top Plate.
- Spring loaded retention rod keeps the thumb screw under pressure to prevent it from rotating due to vibration.
- Compatible with your pre-existing fixtures.
- (3) mounting options
- -- Clamp ledges on both sides.
- -- 1/4" mounting holes in base plate.
- -- Shaft mountable for articulating work rest systems.
- 8.0" long x 3.5" wide x 1.30" tall
- 1/2" range of motion
- (1) 8" Micro Adjust Base with Hardened Steel Top
- (1) 8.5" Blade Fixture
- (1) Set of custom clamps for mounting to work rest
