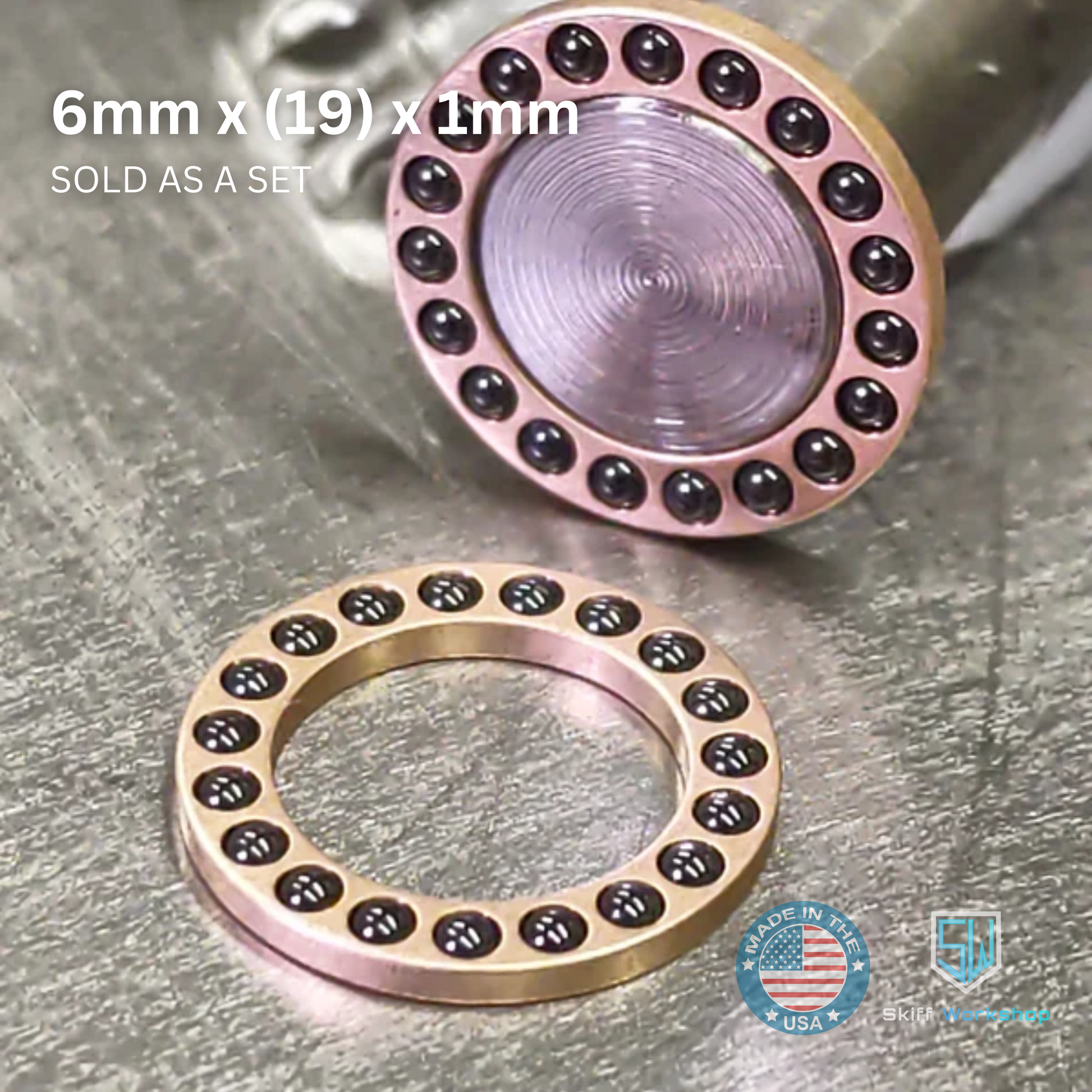

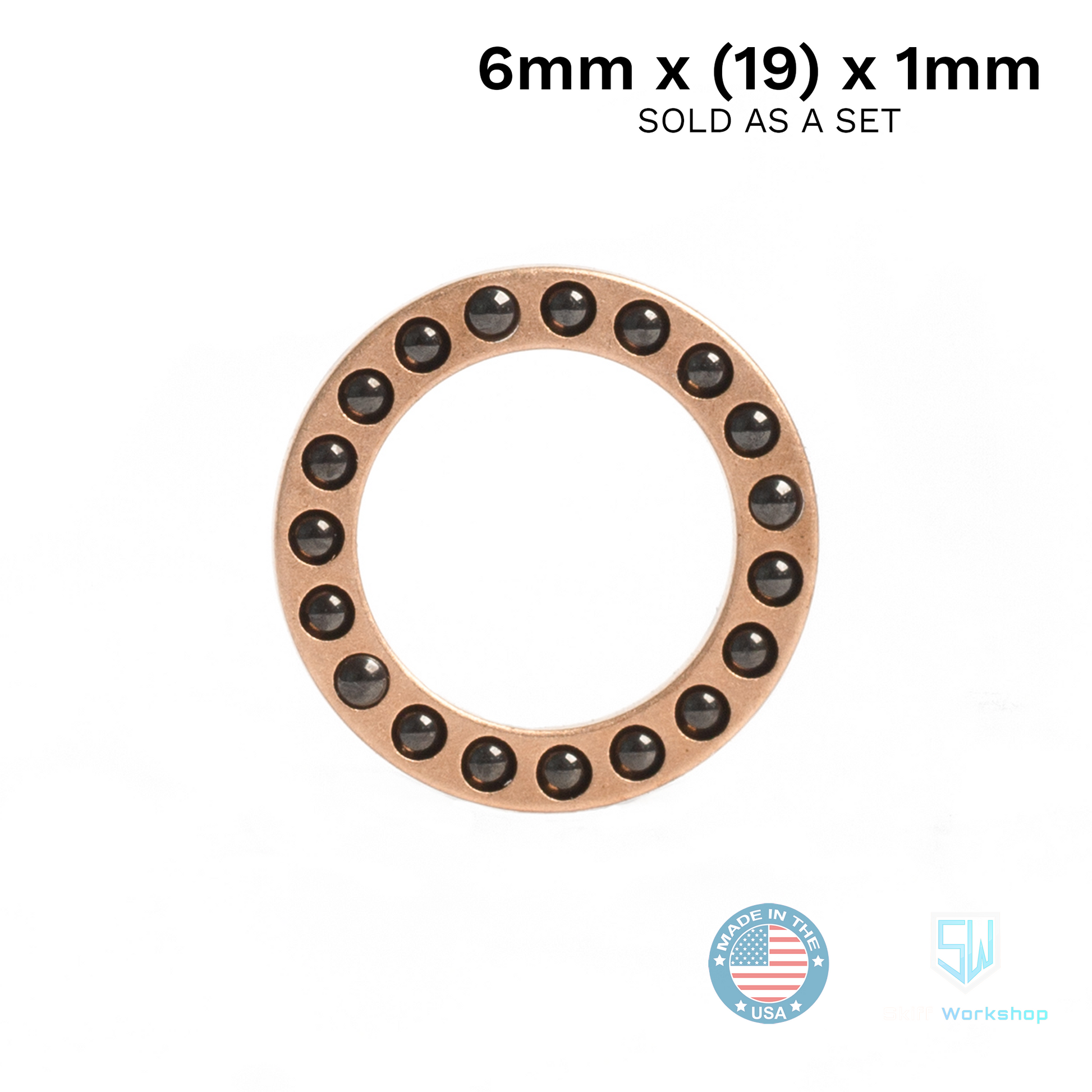

Cage Bearings - Pivot: 6mm<br>Ceramic Bearings: 1mm (19 ball)
Cage Bearings - Pivot: 6mm<br>Ceramic Bearings: 1mm (19 ball)
Couldn't load pickup availability
The new bearing compatibility list is now live, check it out here!

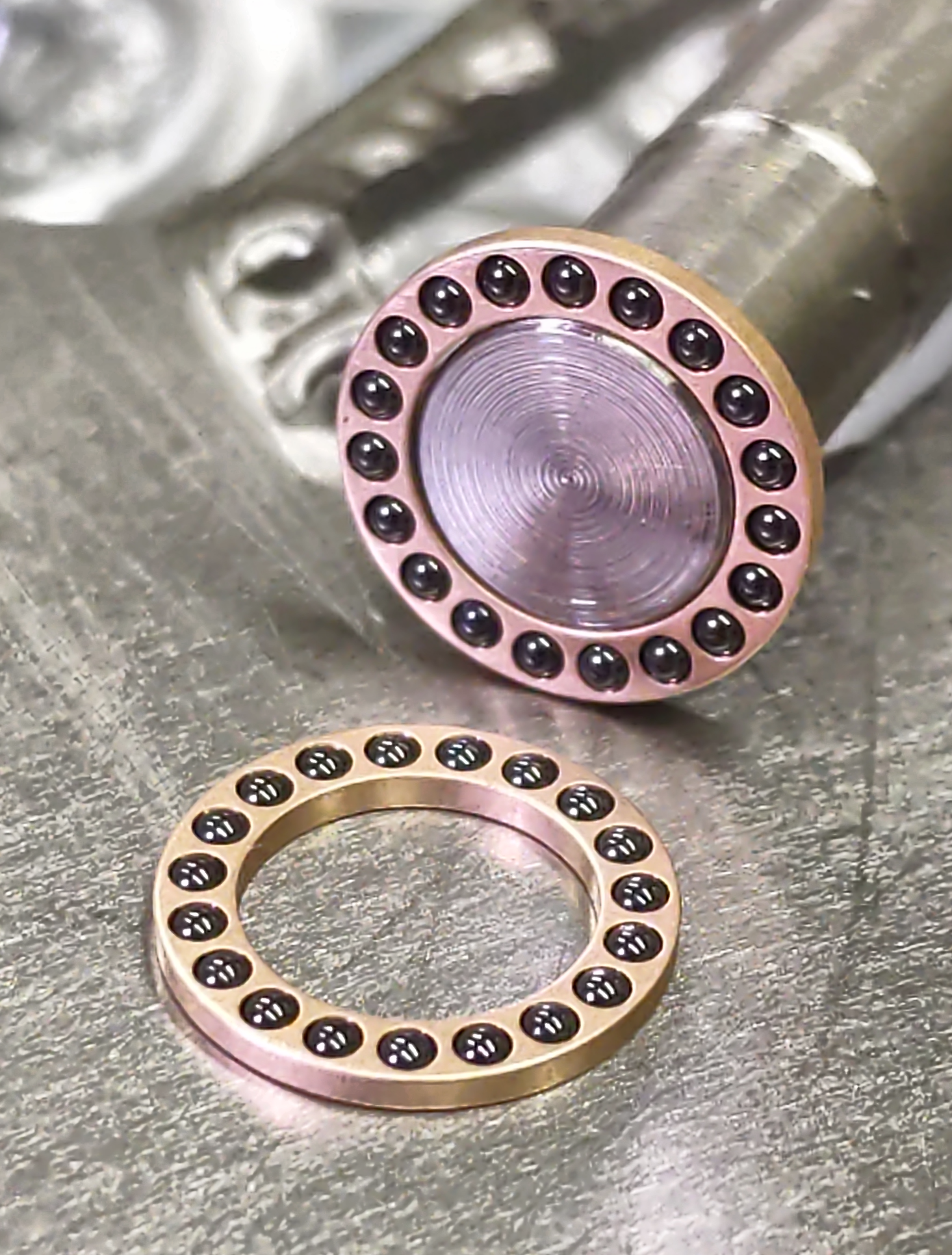

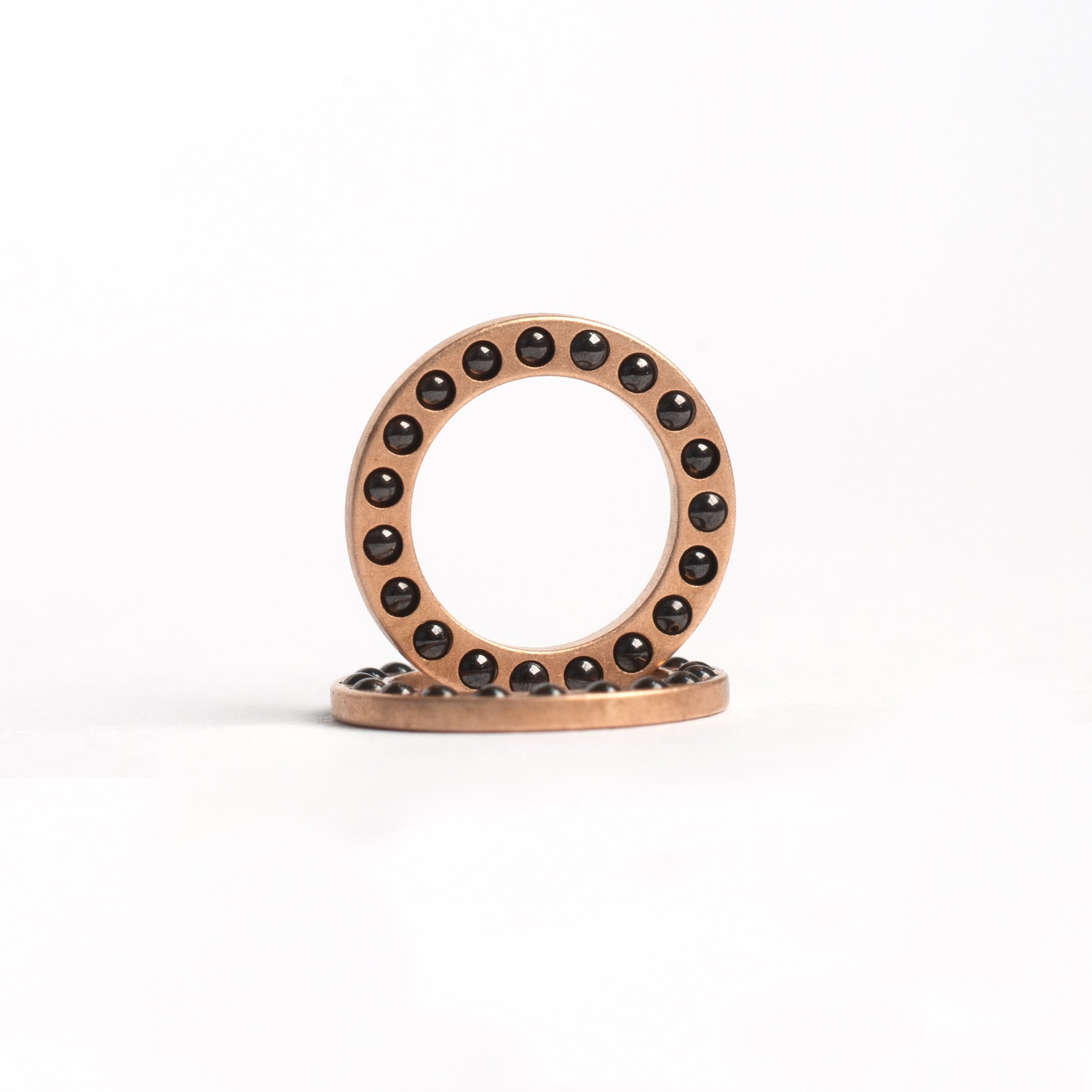

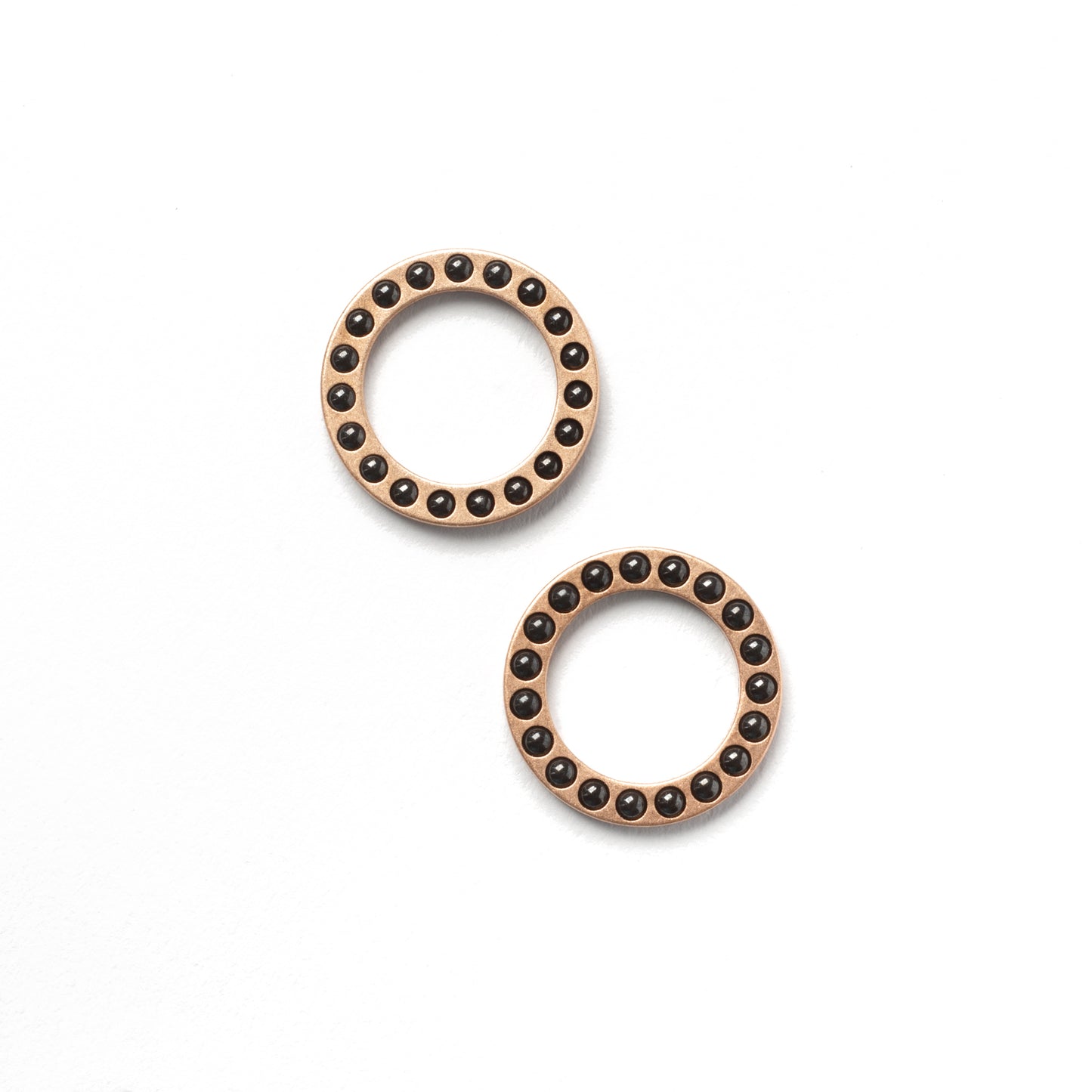

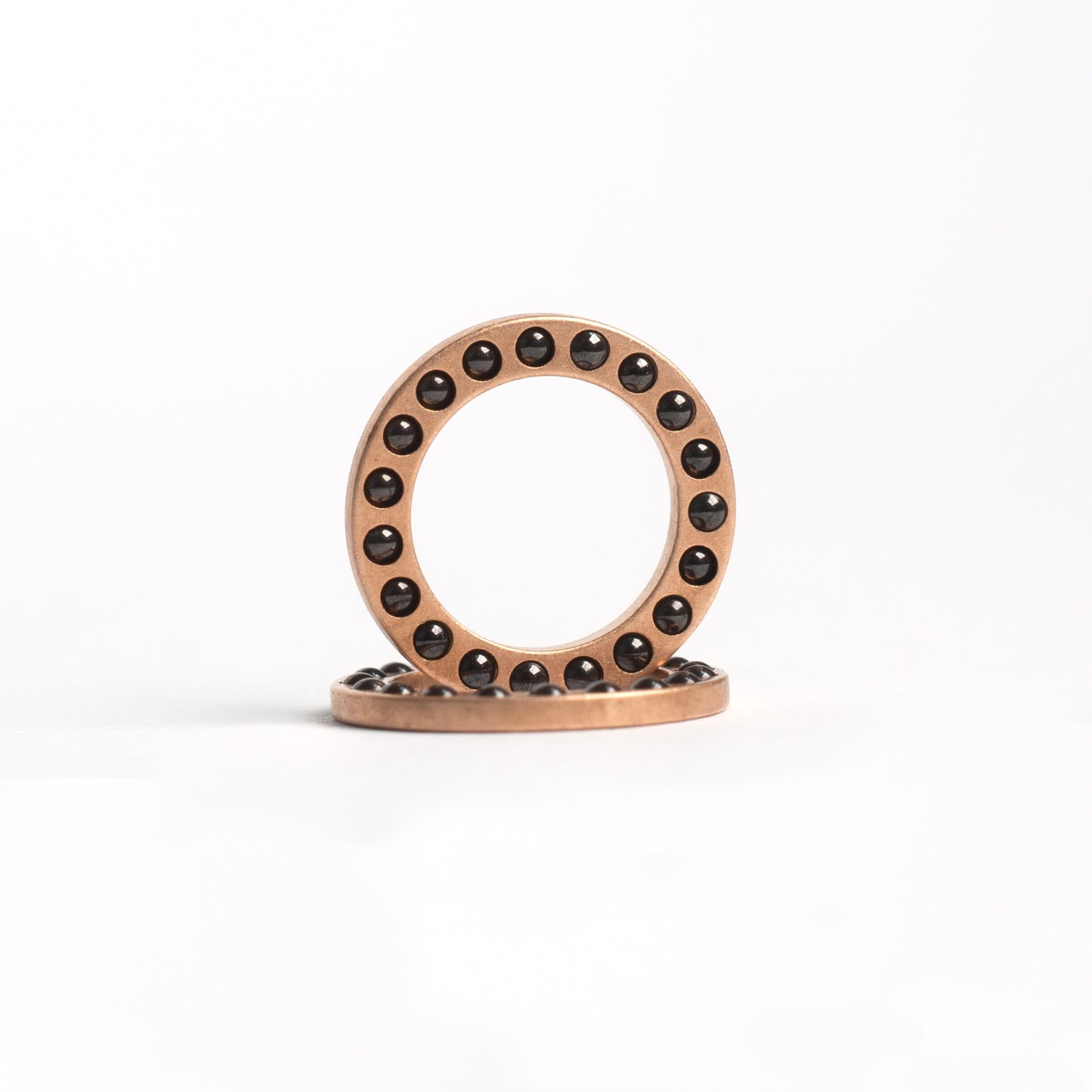

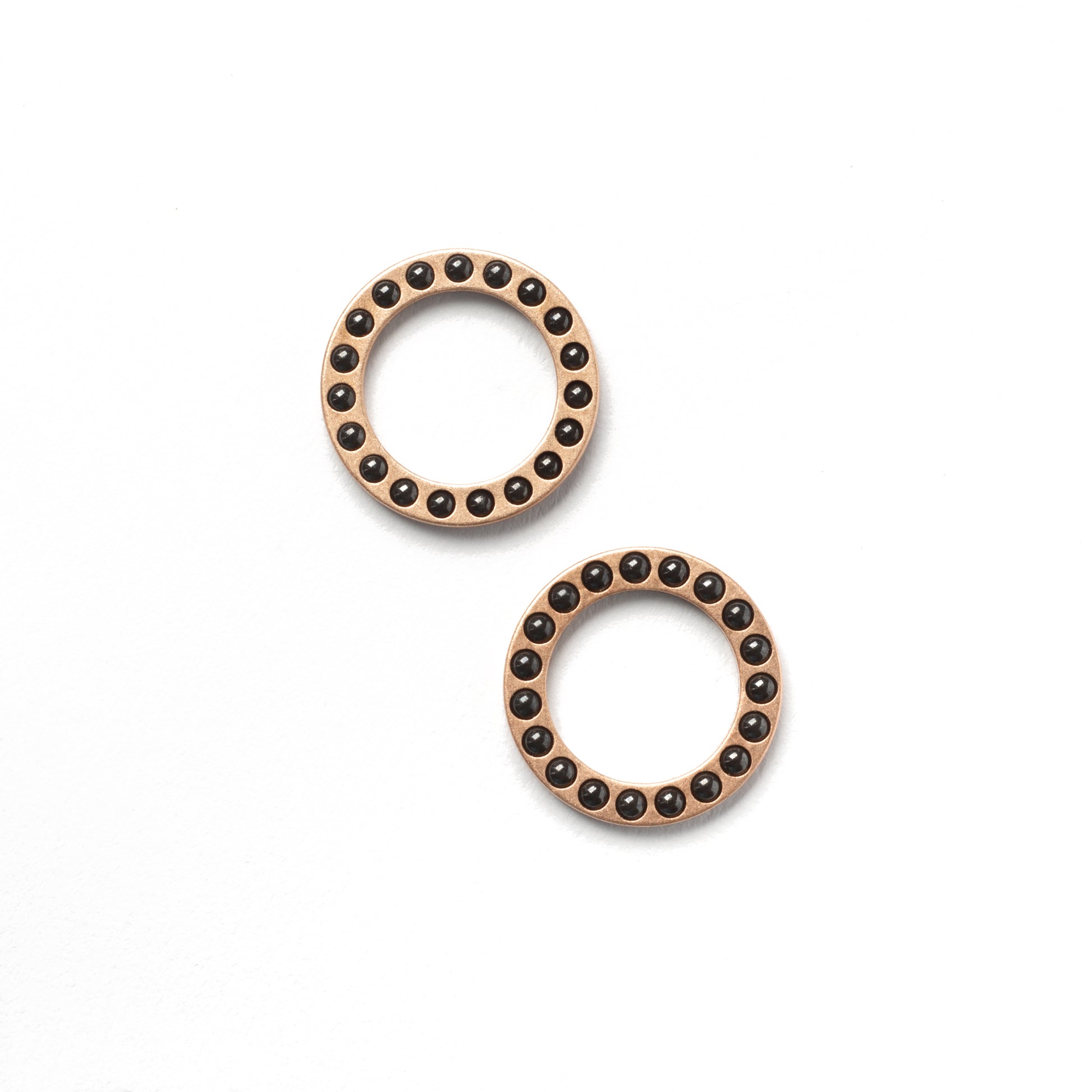

Cage bearings that allow more balls to be placed around the knife pivot than standard cage bearings. Which provides more support for the blade and decreasing stress on each ball. The ceramic balls are captured in the disc but are still free floating to prevent binding.
Includes Grade 5 ceramic bearings pre-installed.
- Increased blade support over caged bearings of same size
- Improved ball pathing around pivot
- Less pivot screw tightening required
- CNC machined from solid phosphor bronze
Dimensions
| ID | OD | Disc | Ball |
| 0.238" | 0.35" | 0.030" | 0.0393" |
| 6.04mm | 8.89mm | 0.76mm | 1mm |
Ordering details
- One set equals two individual cage bearings
Bearing Compatibility
The below knives have been found to work with this bearing.
Click here to view the full compatibility chart.
I give the bearings a 5 out of 5. Excellent as always and fit perfectly for my AD20.5. However. USPS said it would be delivered on Tuesday the 17th. Status was never updated after that and I didn’t receive them until Friday the 20th. I see they say at one DC for 3 days with no movement, 2 at another, etc, etc. Our postal service is NOT a decent service for delivering post. Anyhow, shipping aside, I highly recommend Skiff workshop. There’s none better and I will buy again, even if it comes via USPS.
Excellent! 👍🏼👍🏼

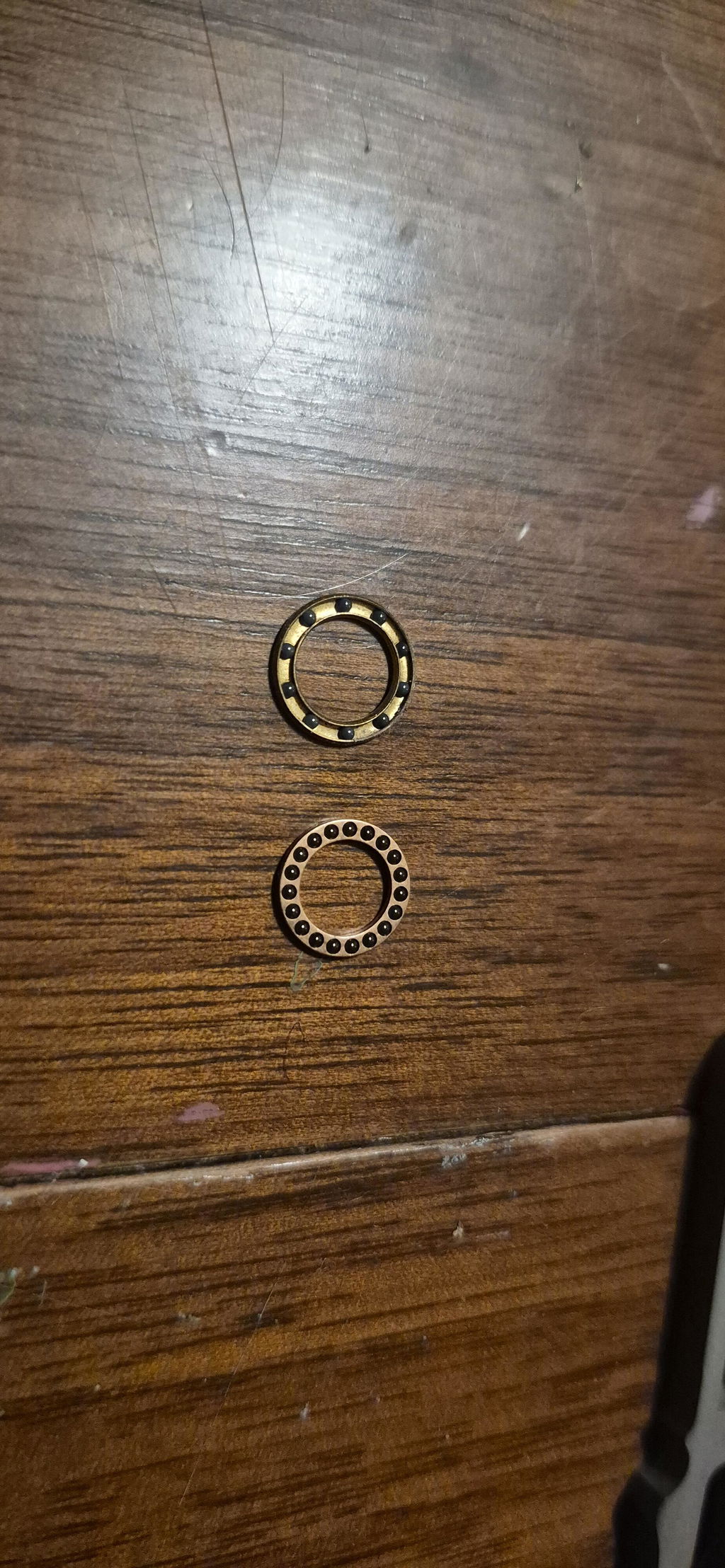

Absolutely made the lock up tighter and stronger on my demko ad 20.5 but it also took out the little play in the blade by adding way more bearings in the cage than the stock pivot bearings.
Bought them for my ad20.5 and they fit better than the stock bearings and gets rid of the little bit of blade play it had along with being smoother
Awesome as always
