Cage Bearings - Pivot: 6mm Ceramic Bearings: 1mm (19 ball)
Cage Bearings - Pivot: 6mm Ceramic Bearings: 1mm (19 ball)
Couldn't load pickup availability
The new bearing compatibility list is now live, check it out here!

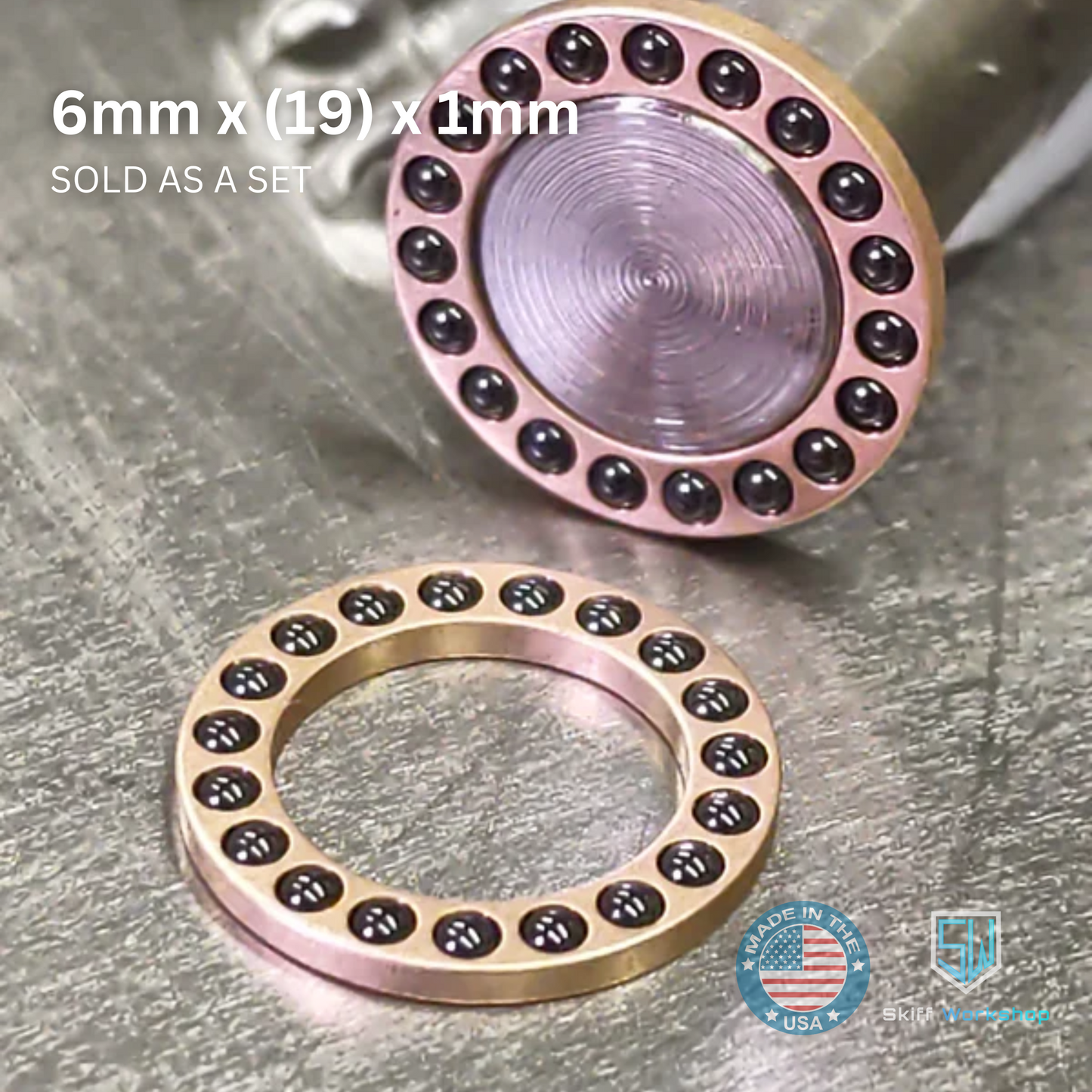

Cage bearings that allow more balls to be placed around the knife pivot than standard cage bearings. Which provides more support for the blade and decreasing stress on each ball. The ceramic balls are captured in the disc but are still free floating to prevent binding.
Includes Grade 5 ceramic bearings pre-installed.
- Increased blade support over caged bearings of same size
- Improved ball pathing around pivot
- Less pivot screw tightening required
- CNC machined from solid phosphor bronze
Dimensions
| ID | OD | Disc | Ball |
| 0.238" | 0.35" | 0.030" | 0.0393" |
| 6.04mm | 8.89mm | 0.76mm | 1mm |
Ordering details
- One set equals two individual cage bearings
The bearings are superior to the original hardware of my Flytanium Arcades - they give them a very smooooooth action :-) Despite high shipping cost to Germany and custom fee they are worth every „Cent“.
Just installed a set on my AD20.5 3v Tanto and my AD20.5 20cv sharksfoot blade. The improvement is immediately noticeable and drastic. I've used both knives regularly and deployed the blades thousands of times so trust me when I say the action is smoother and feels more refined than the stock bearings. Nothing against the originals, but these are so much better.
Saw a huge difference after installing in my Demko ad20.5
Wow huge difference in the smoothness . The action is wonderful couldn't have made a better upgrade. Thanks skiff
Swapped out the bearings on my flytanium arcade and AD20.5 and they are so smooth its even more addicting to open and close them
